Ride Maple MC

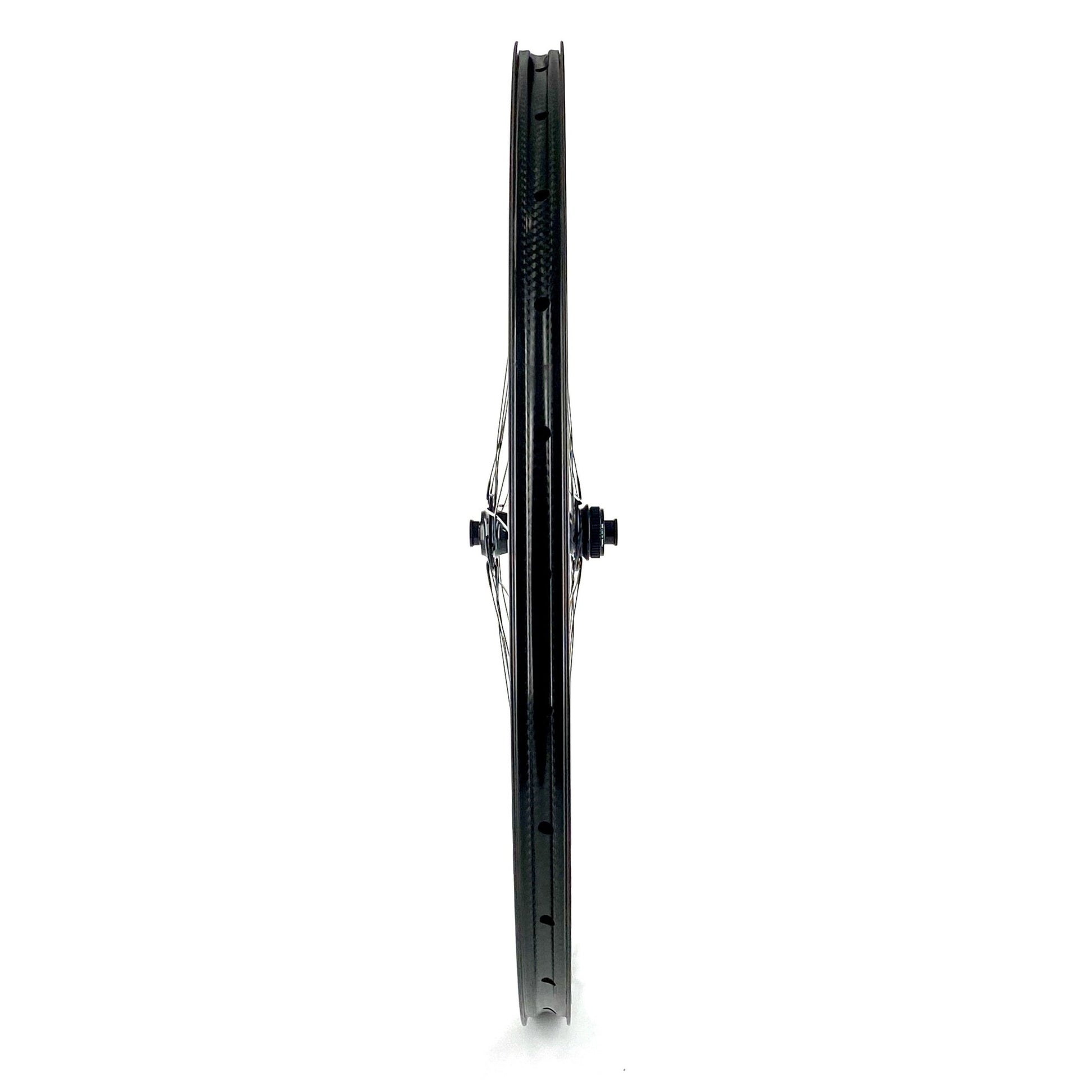

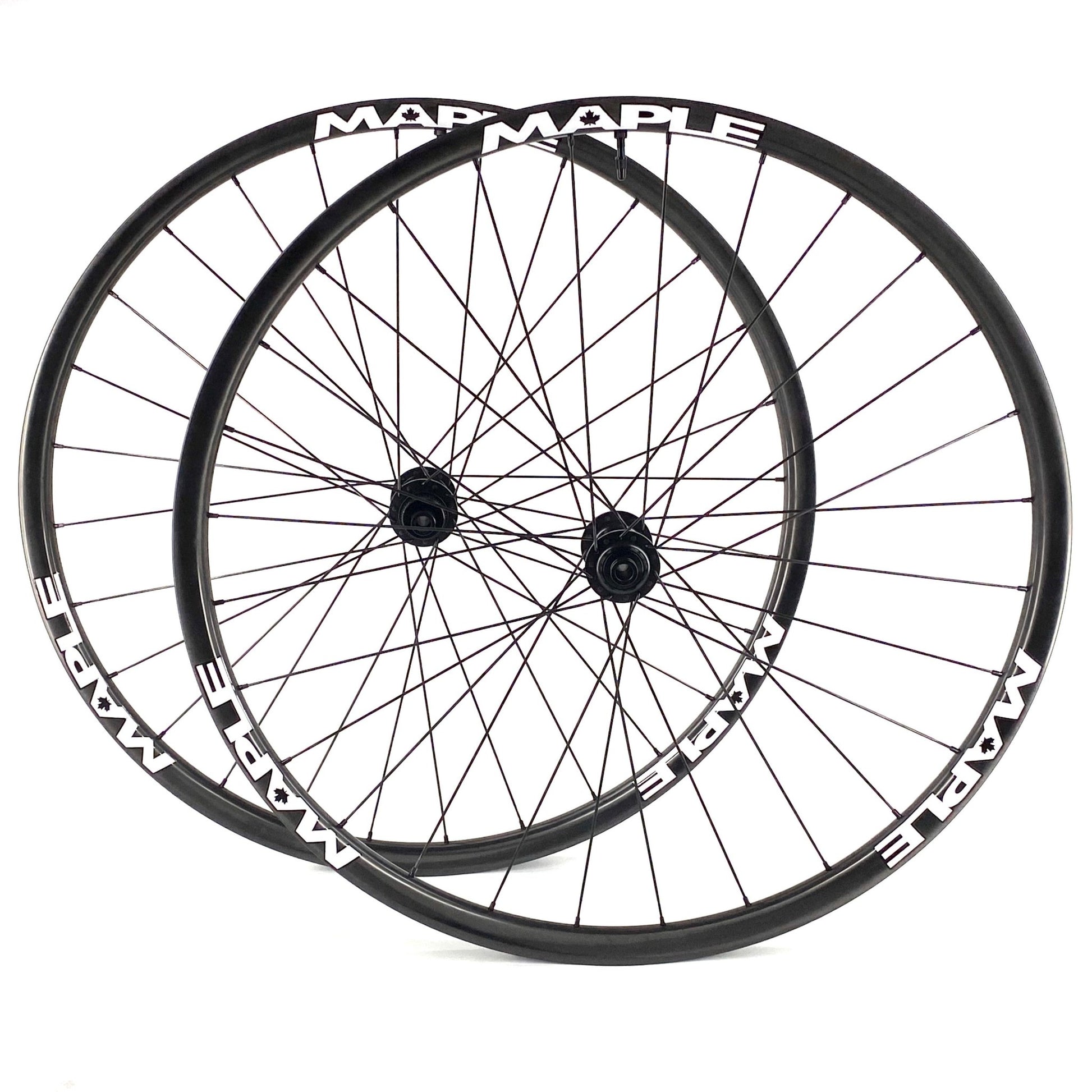

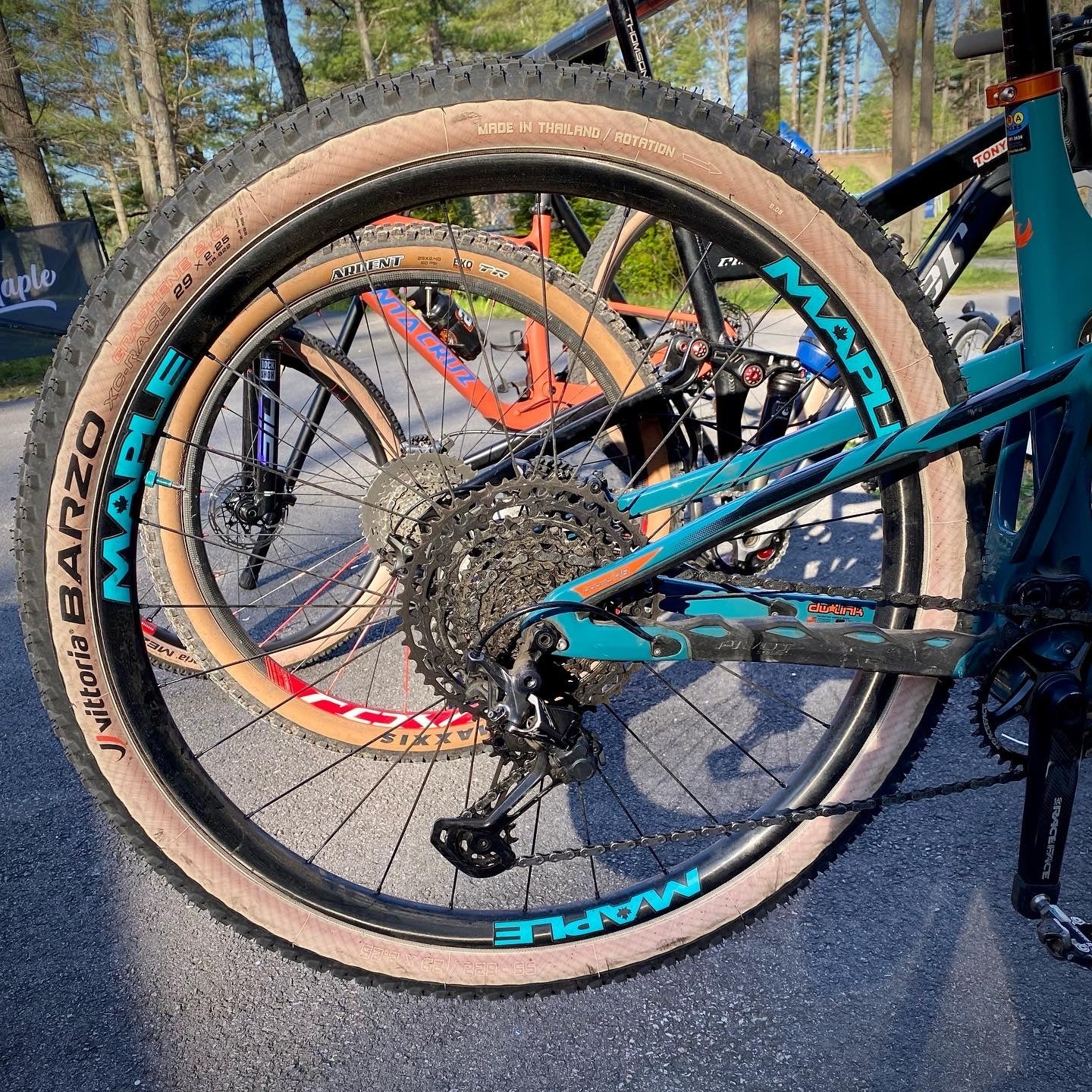

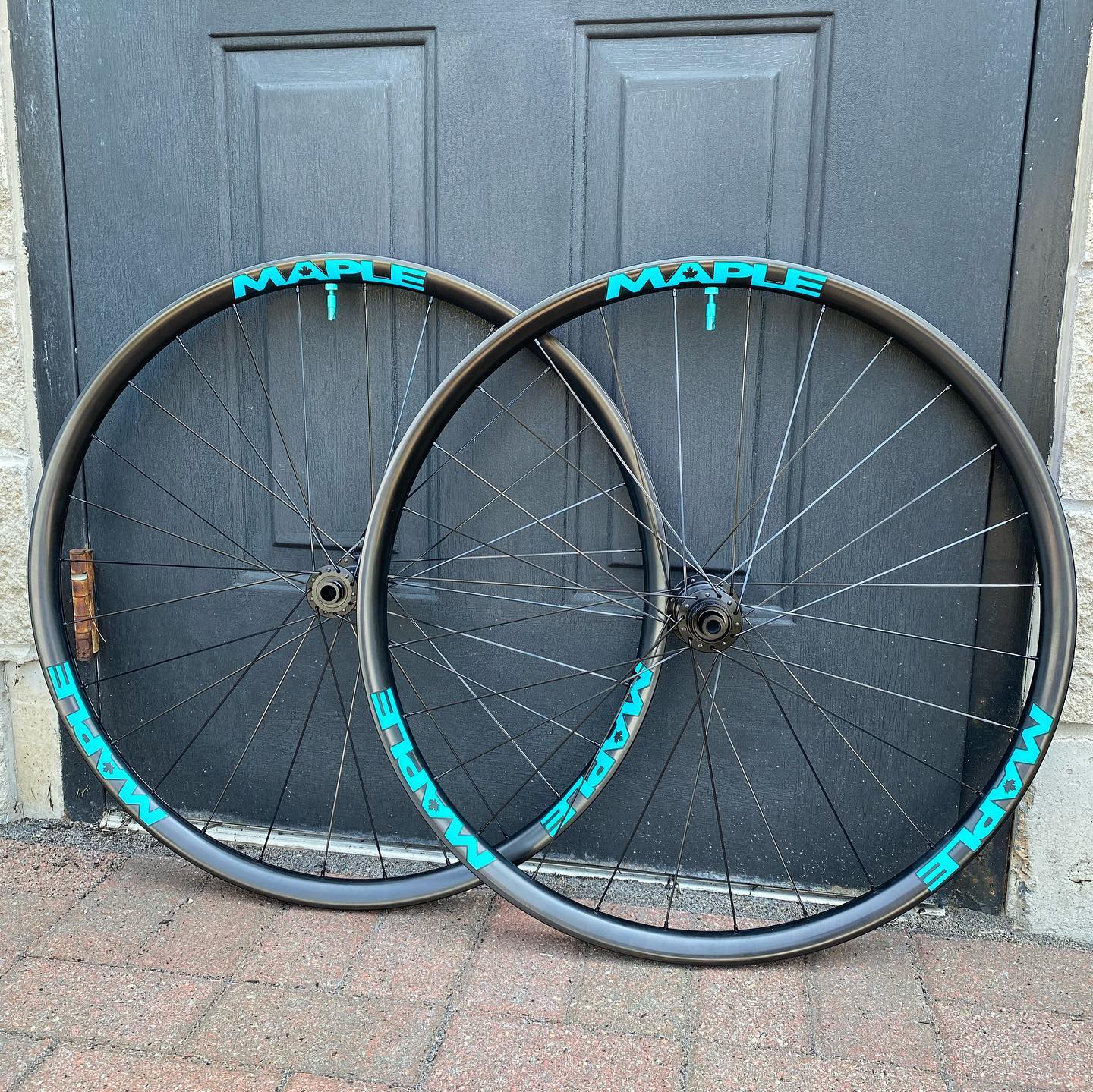

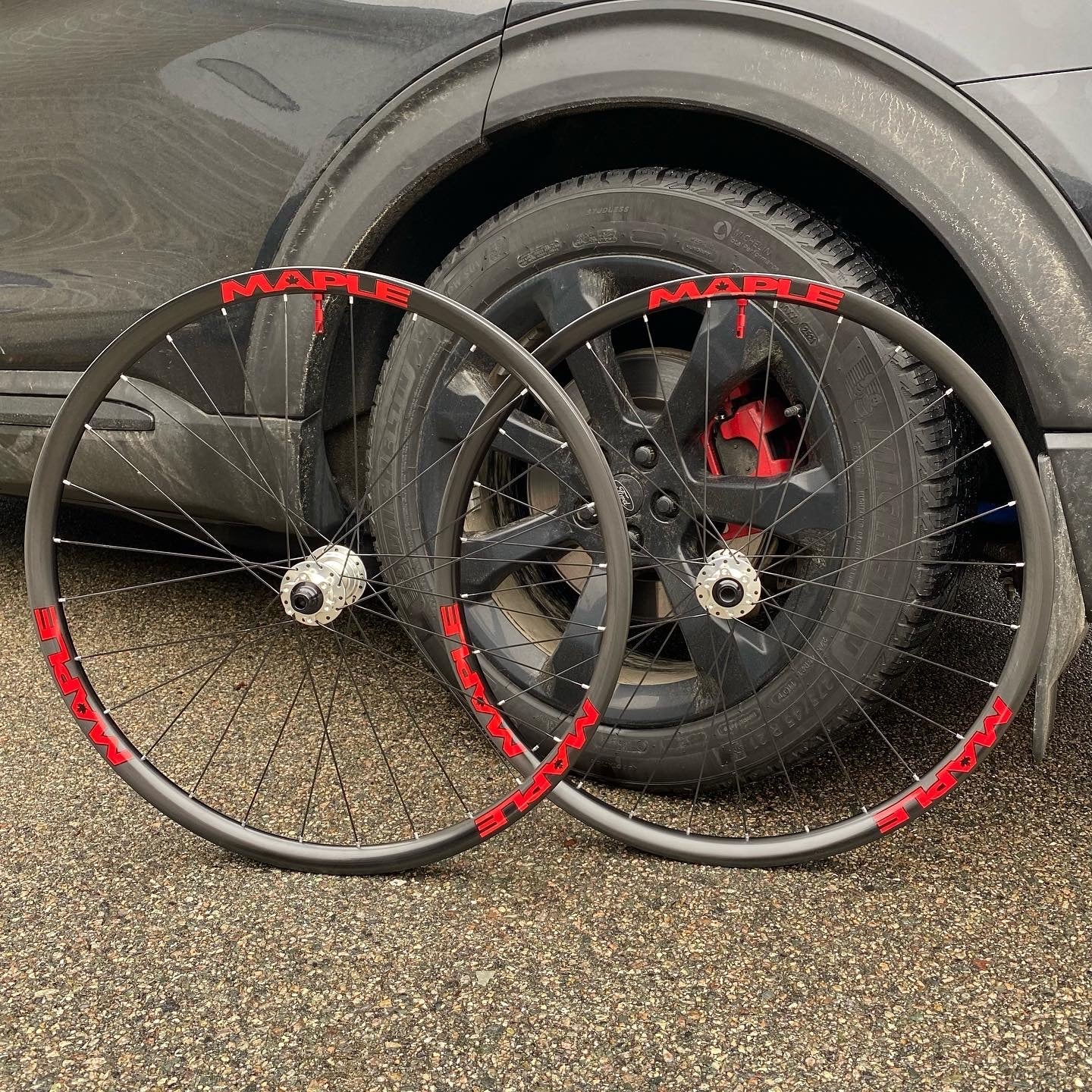

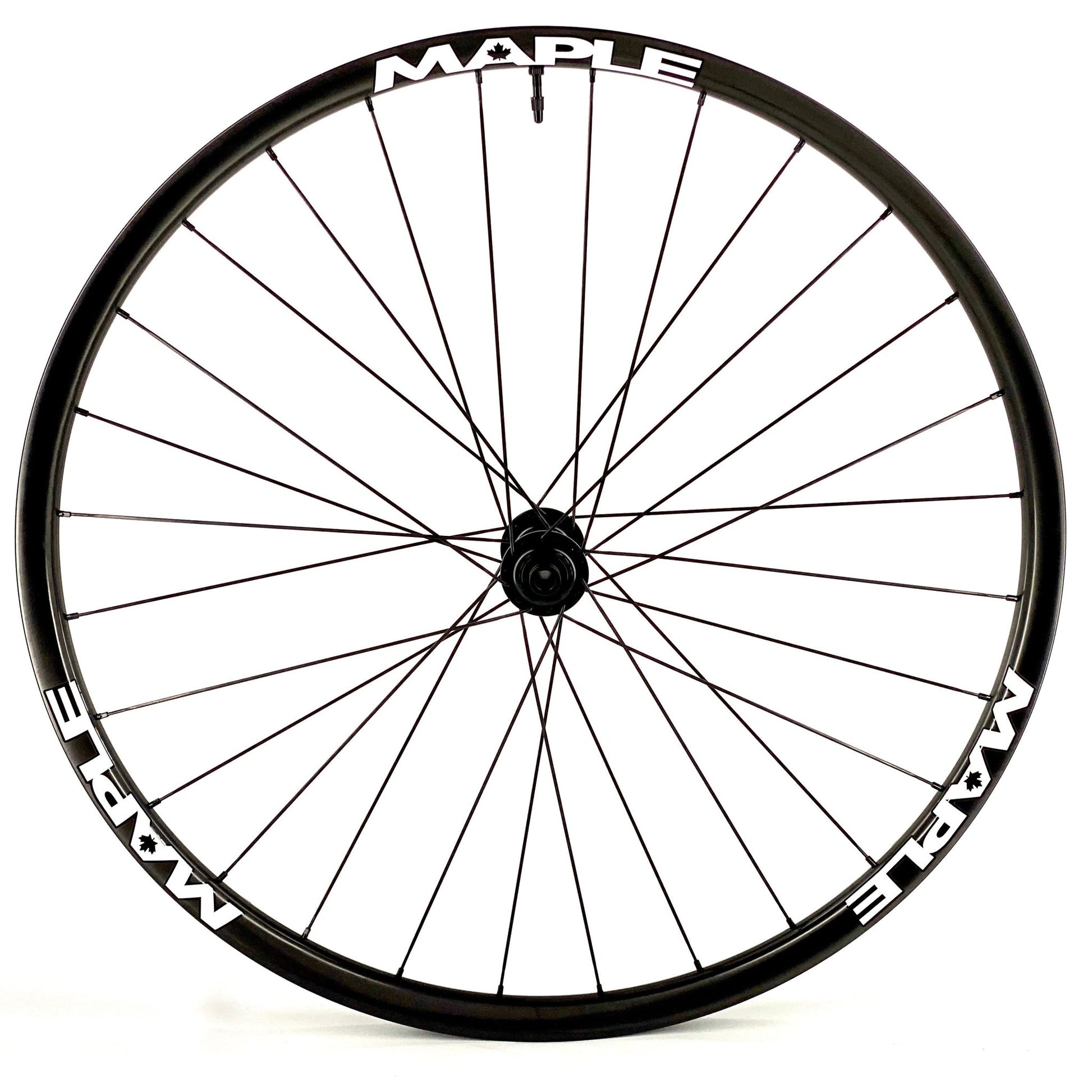

Maple XCO Wheelset

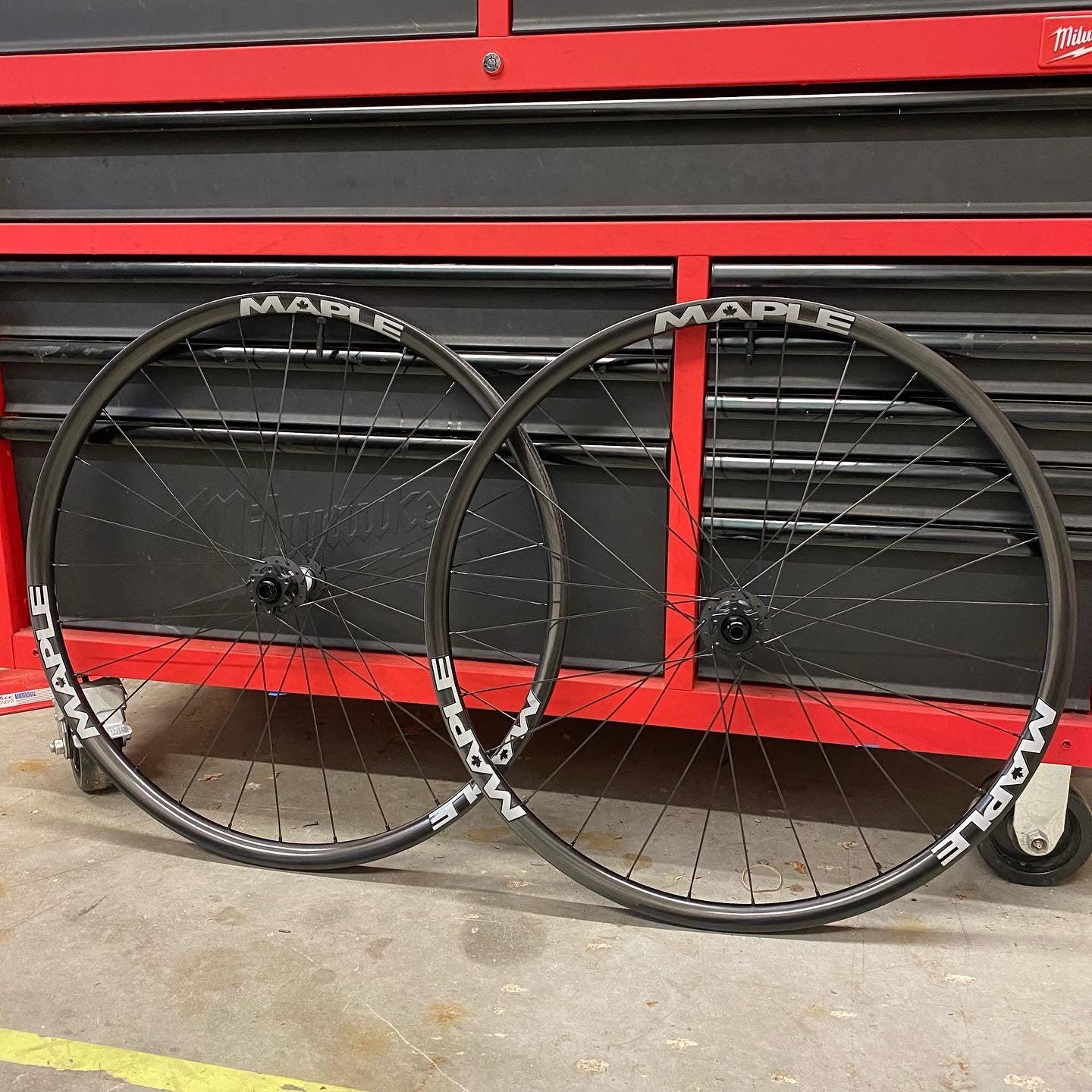

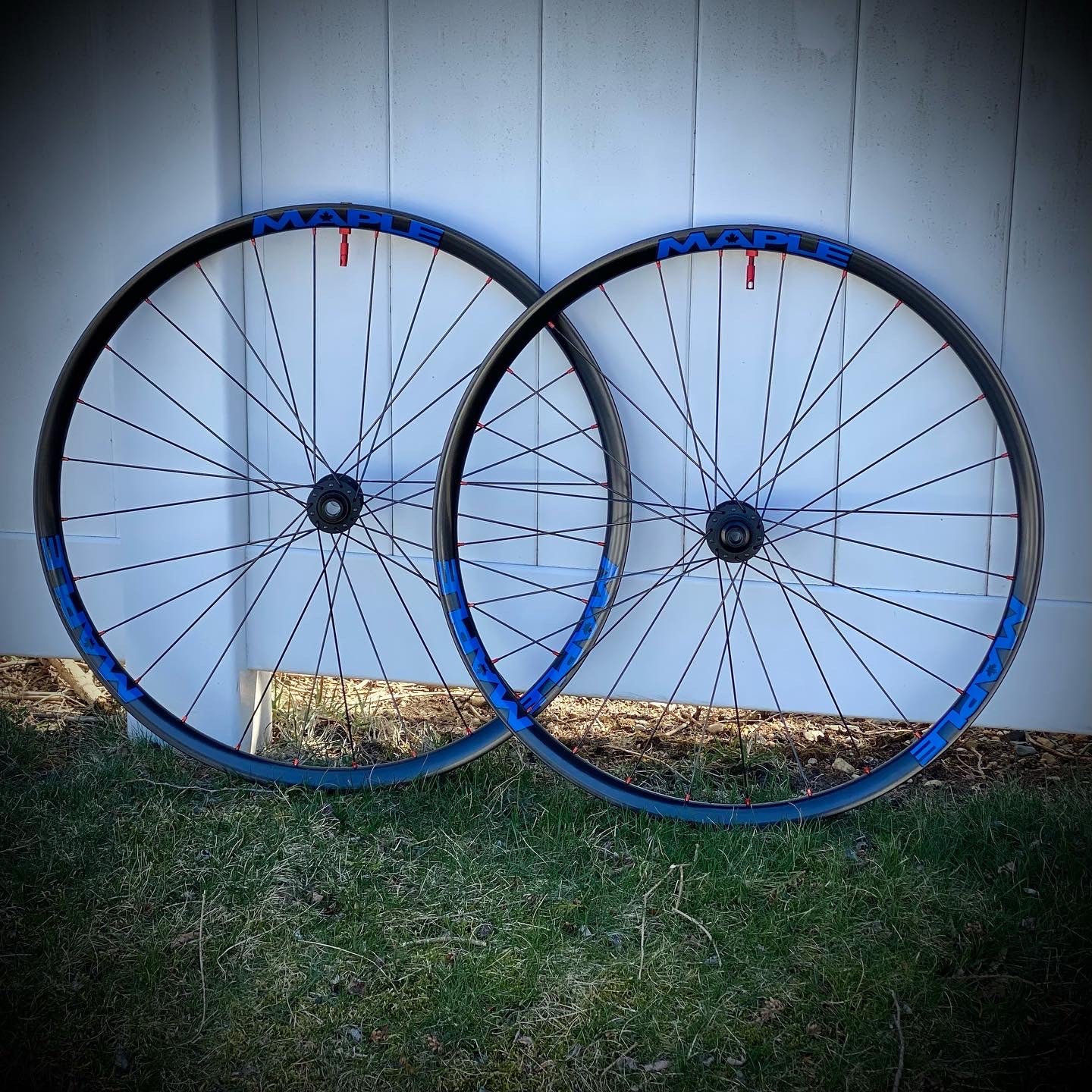

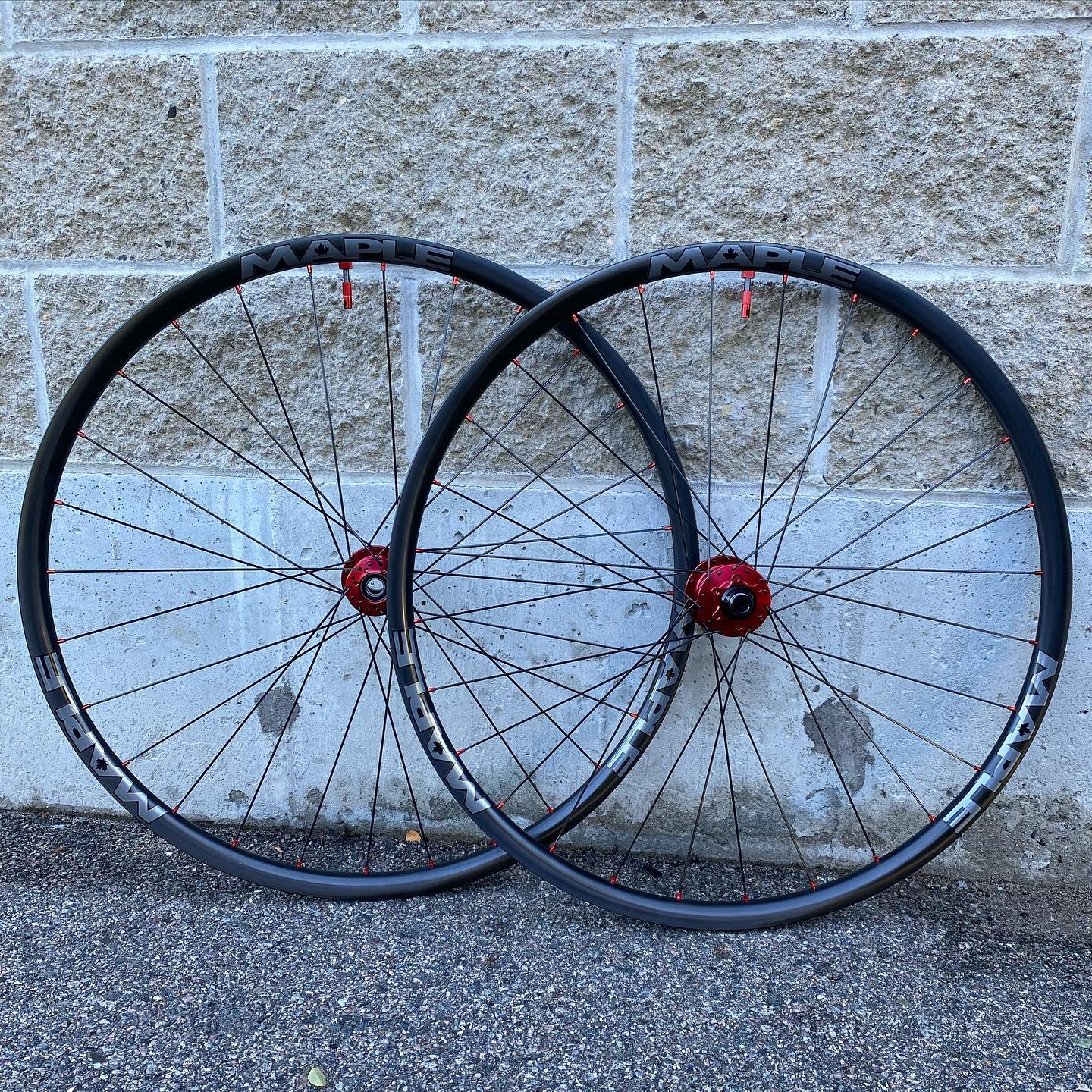

Maple XCO Wheelset

1 Review

Cross Country Racing

XCO is our lightest mountain bike wheelset

The XCO is an improved version of our former XCM mountain bike wheelset.  XCO is for riders who value the lightest weight and a more traditional width for fast XC races.  You know who you are!  Asymmetric for better power transfer and stronger wheels that stay true longer.



Regular price $1,349.00 USD
Regular price Sale price $1,349.00 USD
Sale Sold out

Discount available for Military, First Responders, Medical Workers and Teachers

Logo for GOVX ID, a service used to verify military, first responder, nurse or teachers to qualify them for discounts What is GovX ID?

HAND BUILT BY PROS

Every wheel is hand built by a professional wheel builder who rides, and cares about your ride.

CUSTOM FOR YOU

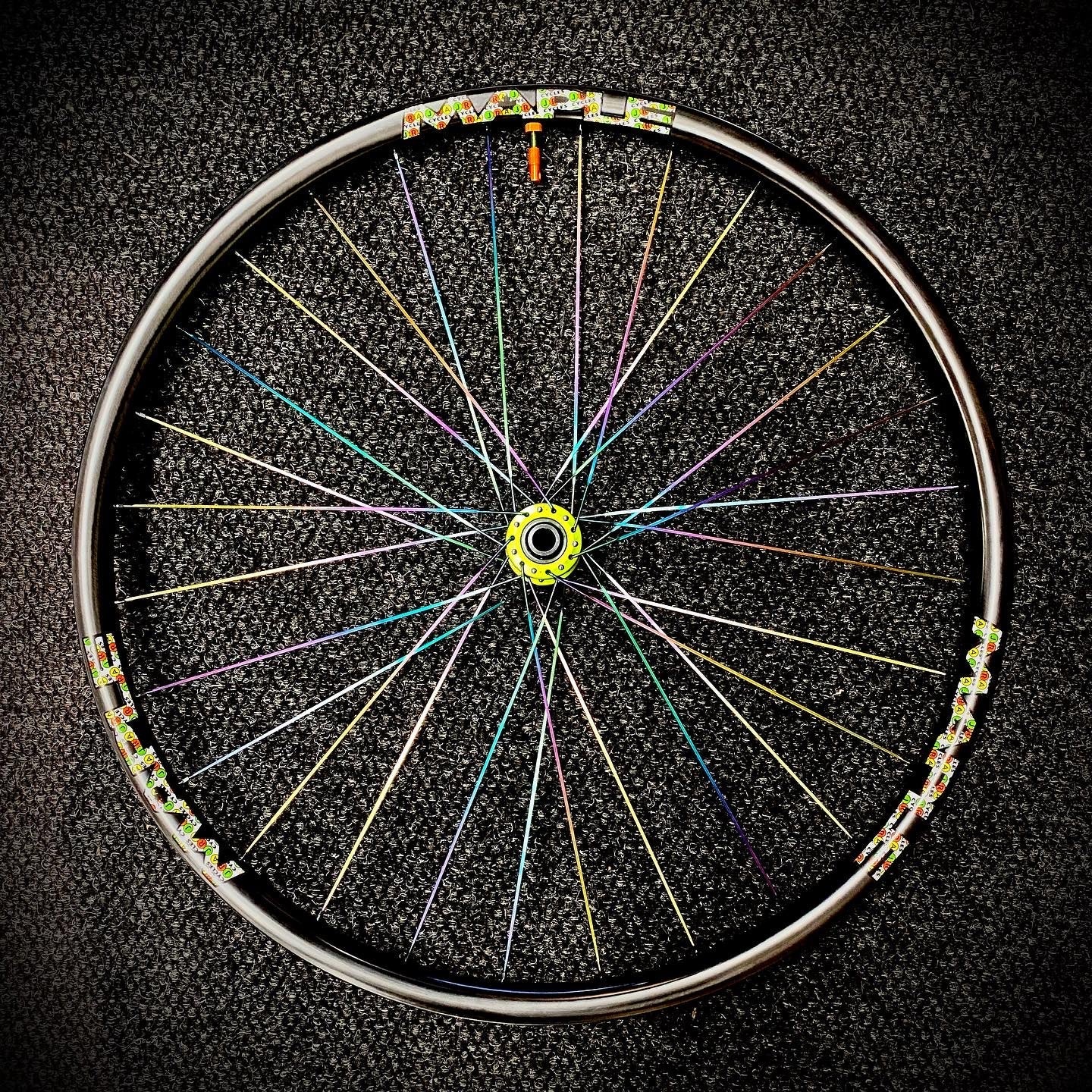

We're not just available, we WANT to hear from you. We want to build you something unique whether it's rainbow spokes or custom decals to match your bike. Custom really does come standard.

BEST VALUE

Ride Maple wheels are priced far lower than our competitors without sacrificing quality. We don't use house-brand hubs or cheap spokes and nipples.

TUBELESS READY

Your wheels come taped and with valves installed. We even include a pouch of sealant because we can't fathom you still running tubes!

WARRANTY

All Maple Wheels have a lifetime warranty against defects in materials and workmanship. To qualify for warranty, all wheels must have been purchased through an authorized Maple dealer or directly from Maple "new" and not as "used" or "demo".

Buried in the fine print of other brand's "lifetime warranty" is some variation of what you're reading here.  We're just upfront about it.  We stand behind our wheels, but if you run inadequate tire pressure or other such causes of rim breakage that no wheel can withstand; that's on you, and is what our Incident Replacement is for.

To submit a warranty claim, please contact us to start the process.  Warranty does not cover normal wear and tear, broken spokes or nipples, misuse, impact damage, products that have been altered, improper maintenance, or incorrect installation.  Additional parts installed are not covered by the warranty policy (i.e rotors, tires, etc).

3 YEAR INCIDENT REPLACEMENT

3 Year Incident Replacement (updated December 2023)

Our incident replacement policy is simple. Crash or break it in the first three years of original ownership, and we’ll replace it for a fraction of the price of a new wheel.

Incident replacement includes: rim, labor, spokes, nipples, and tubeless tape. Customers are responsible for shipping to Maple and shipment back to you is included in this transaction.

*Intentional damage is not covered so don't hit your wheels with a hammer or something dumb like that.  Driving into your garage with your bike on the roof is actually covered because that is embarrassing yet also happens to the best of us.

**When you send your wheels to us you must remove your tires, rotors, cassette, tape, valves, dog poop, etc.

REASONABLE LEAD TIMES

We've worked hard to keep rims and hubs in stock to avoid insane lead times. Currently we are delivery most wheel orders in 3-4 weeks.

SUSTAINABLE PRACTICES

We work hard to avoid waste and use recycled materials whenever possible in shipping.

View full details

Wheelset Specs



ARX CXG RCX RCT G650 XCR XCO XCM 29 XCM 27.5 EMP 29 EMP 27.5
Rim Weight (ea) 255g 360g 420g 460g 385g 290g 360g 440g 425g 470g 455g
i9 1/1 Set Weight 1180g 1442g 1520g 1600g 1492g 1292g 1432g 1592g 1562g 1652g 1622g
DT 350 Set Weight 1163g 1425g 1503g 1583g 1490g 1300g 1440g 1600g 1570g 1660g 1630g
i9 SOLiX/Hydra Set Weight 1098g 1360g 1438g 1518g 1474g 1284g 1424g 1584g 1554g 1644g 1614g
DT 240 Set Weight 1094g 1356g 1434g 1514g 1402g 1212g 1352g 1512g 1482g 1572g 1542g
DT 180 Set Weight 1036g 1298g 1376g 1456g 1356g 1166g 1306g 1352g 1322g 1412g 1382g
Diameter 700c 700c 700c 700c 650b 29 29 29 27.5 29 27.5
Spoke Count 24h 28h 24h 24h 28h 28h 28h 28h 28h 28h 28h
ERD 589mm 595mm 569mm 541mm 554mm 595mm 595mm 590mm 550mm 586mm 548mm
Offset 2mm 2mm 0mm 0mm 2mm 3mm 2mm 2mm 2mm 2mm 2mm
Internal Width 24mm 25mm 21mm 21mm 27mm 29mm 25mm 30mm 30mm 35mm 35mm
Depth 25mm 22mm 35mm 50mm 23mm 23mm 22mm 24mm 24mm 26mm 26mm
Tire Size 25-50c 25-50c 25-50c 25-50c 2.0-2.4" 2.2-2.6" 2.0-2.4" 2.2-2.6" 2.2-2.6" 2.4-3.0" 2.4-3.0"
Rider Weight Limit 195lbs 250lbs 275lbs 275lbs 280lbs 220lbs 250lbs 295lbs 295lbs 295lbs 295lbs



Wheelset weights are approximate and may differ due to variances in manufacturing, brake style choice, nipple choice, lacing options, etc.
